ASCE 30 rail is characterized by lighter weight, smaller cross-section and shorter rail gauge. Weight is 30 lbs/m (15.2 kg/m).
30 lb crane rail is commonly used in light rail systems and short-distance railway lines such as industrial railways, mining railways, agricultural railways, etc.
30 lb crane rail is a common rail type used in railway systems in countries such as the United States and South American countries.
Kingrail Parts can provide high quality ASCE30 rail products. We are a professional steel rail supplier.
Specification:
type | weight (kg/m) | material | length (m) |
30lb/yd | 15.20 | Q235/55Q | 6-8m |
rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
79.37 | 79.37 | 42.86 | 8.33 |

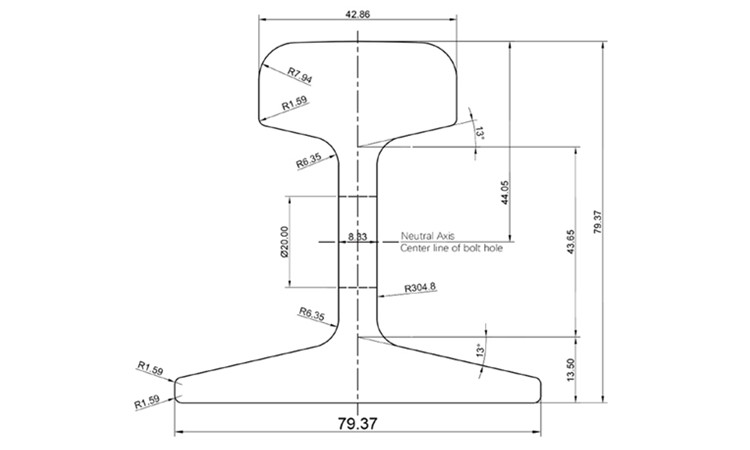

Drawing:
