8kg rail is a type of railway rail commonly used in ultra-light rail applications such as trams and industrial railways.
Kingrail Parts 8kg rails weigh 8kg per meter, have standard appearance and are suitable for use on low-speed and small-capacity railway networks.
Dimensions:
type | weight (kg/m) | material | length (m) |
8Kg | 8.42 | Q235/55Q | 6m |
rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
65 | 54 | 25 |
7 |

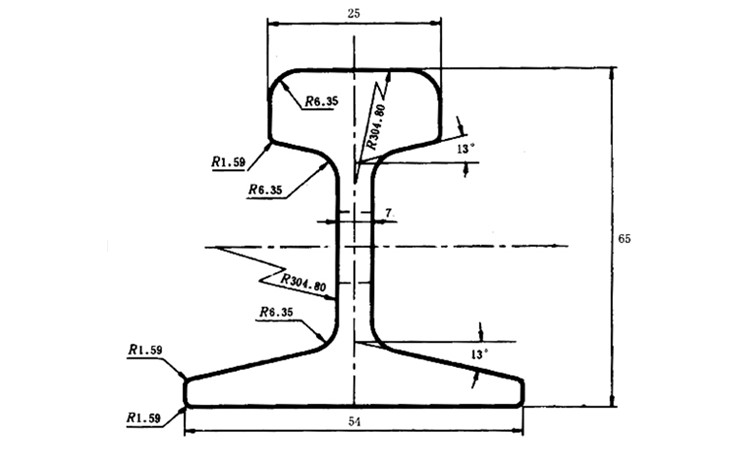

Drawing:
