100RE rail is manufactured according to the American AREMA standard with a mass of 101.5 lbs/yd (50.35 kg/m).
Kingrail Parts can supply a variety of rails, including light rails, AREMA standard rails, such as 100RE rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
|
size |
Dimension(mm) |
weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
100RE(TR50) |
68.2625 |
152.4 |
136.53 |
14.29 |
50.35 |
900A/1100 |
12-25 |

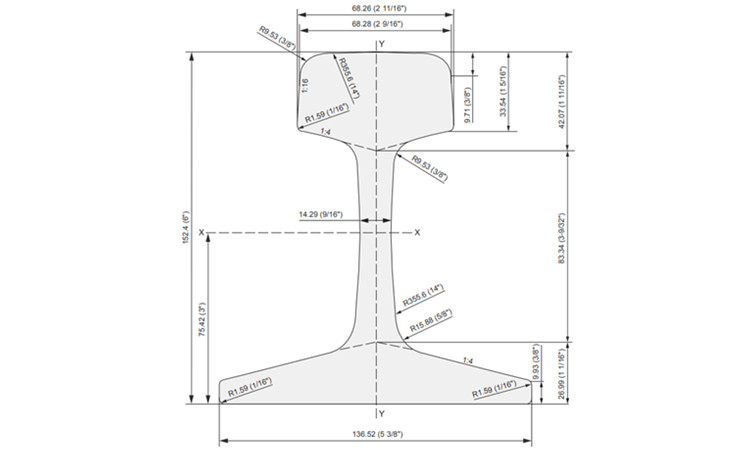

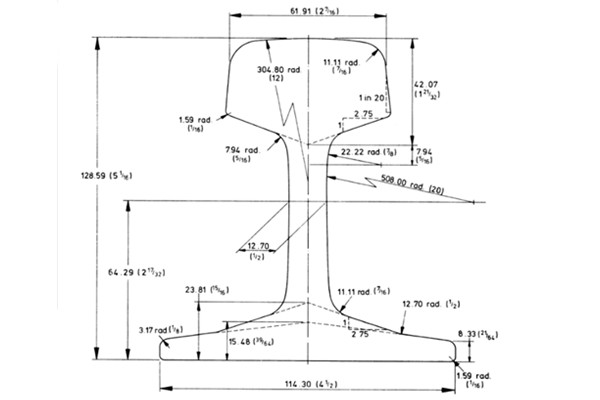

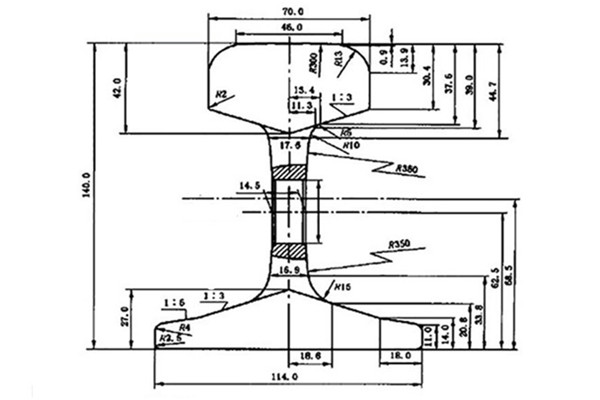

Drawings
