ASCE40 rails are mainly used in light cranes, mining rails, factories, ports, railways, etc.
Kingrail Parts can provide American standard rails, including ASCE25 rails, ASCE30 rails, ASCE40 rails, ASCE50 rails, ASCE60 rails, etc.
Specification:
Size: ASCE40 rail
Standard: ASTM A1
Material: Q235B, 55Q, U71Mn
Length: 12m~25m or other lengths according to customer requirements
Dimensions
| Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
| ASCE40 | 88.9 | 88.9 | 47.6 | 9.90 | 19.84 |

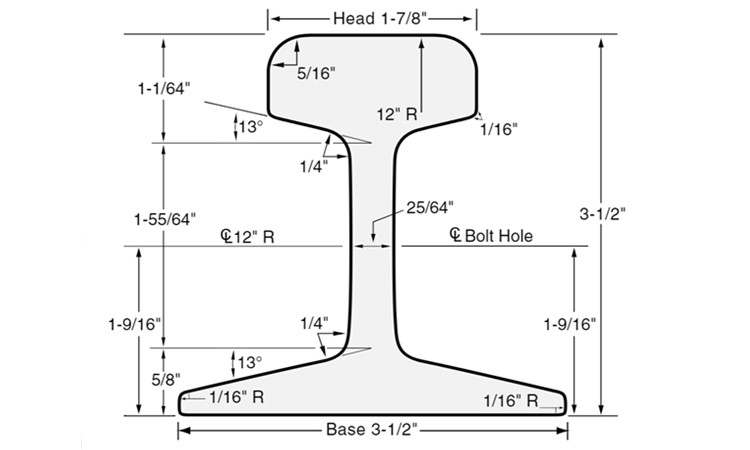

Drawing:
