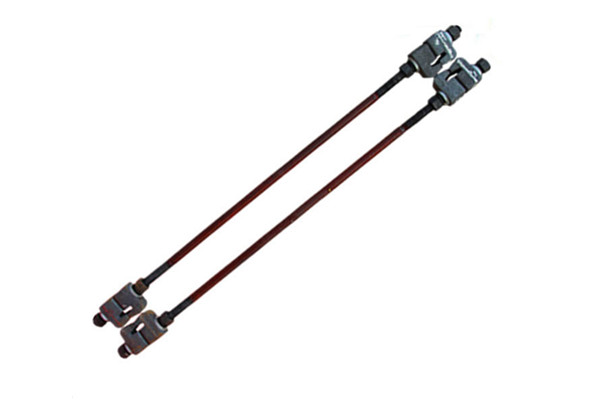

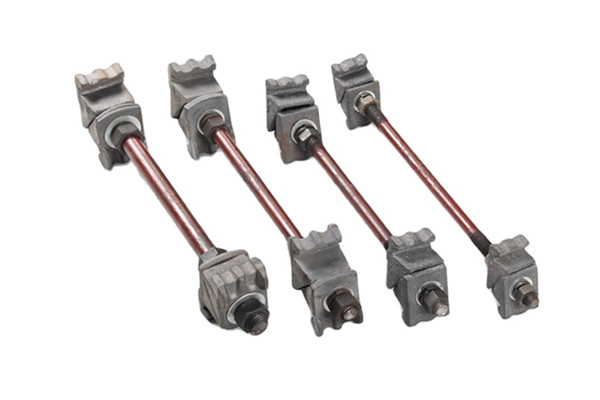

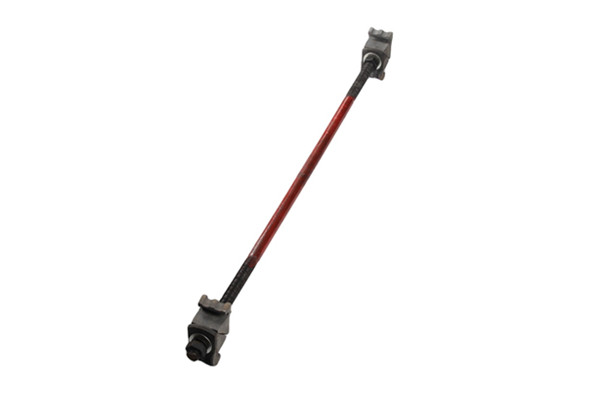

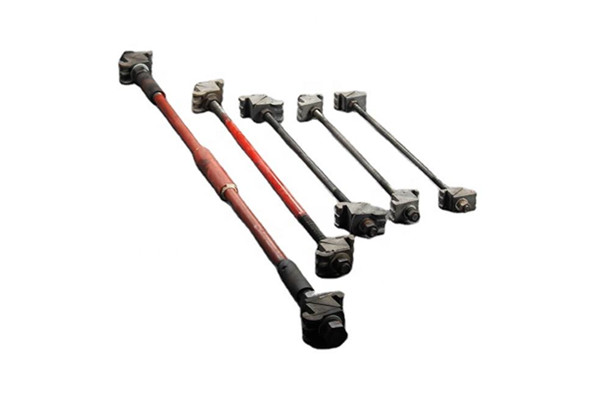

Railroad track gauge rods are also known as rail gauge rods. Rail gauge rods are rods specially designed to connect two rails at the bottom of the rail to protect the rails from tilting and keep the rails within a certain rail gauge.

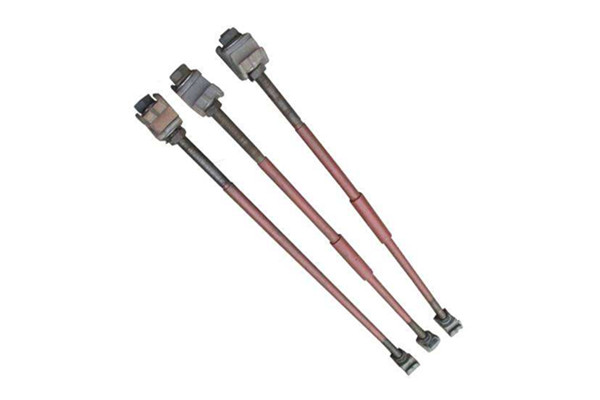

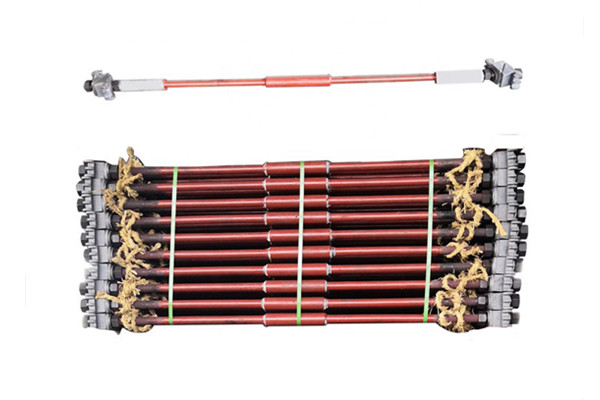

As a specialist manufacturer of gauge tie rods, Kingrail Parts can supply standard gauge rods for 56-½" rail and 60-140 lbs, both uninsulated and insulated.
Our railroad track gauge rods are made according to UIC, BS, JIS and other standards.
Specifications
Application: 43, 50, 60, 75kg/m rail
Working temperature: -40~60 degrees Celsius
Standard: TB/T1780-86
Lengths: 600mm, 762mm, 900mm, 1435mm, etc.
| No. | Part | Quantity | Specification | Material |
| 1 | nut | 4 | M30 M36 | 3# |
| 2 | rod | 1 | M30 M36 | 3# |
| 3 | iron jaws | 4 | I type II type | KTH350-10 |
| 4 | flat washer | 4 | M30 M36 | 3# |
| 5 | spring washer | 4 | M30 M36 | 65Mn |
OEM Service
We can customize rail gauge rods according to customer drawings and specific requirements.
Contact us
Please contact us for more information and quotations.
