Joggle fish plates are usually used to connect two or one steel rails welded due to fracture. It has a wide range of uses in areas with cracks or defects in welded joints. Like ordinary railway fishplates, joggle fish plates are fixed with fishtail bolts.
Joggled Fish Plate Specifications:
Material: 45#, 50#
Type: 60kg, 52kg
Hole Quantity: 4 Holes, 6 Holes
Standard: BS, ASTM And DIN, Among Others.

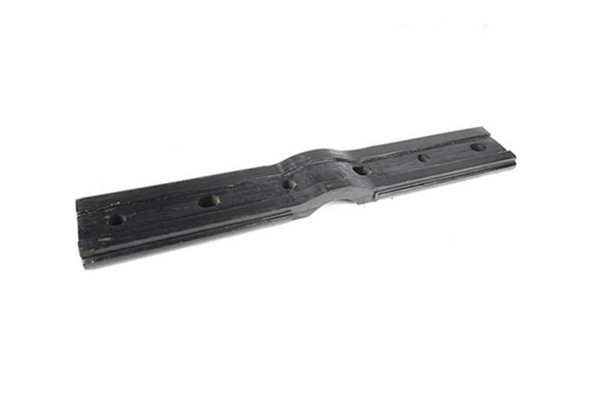

Joggled Fish Plate Structure:This is a specially designed railway fishplate with a protrusion in the middle, which can accommodate the newly welded seam until the ultrasonic inspection is carried out, or the defective weld seam is protected and the welding seam failure is urgently repaired.
Features of Joggled Fish Plate:
joggle fish plates are known for their high tensile strength, durability, corrosion and heat resistance, ease of installation and use, and economy.
Joggled Fish Plate Use:
joggle fish plates can be used to protect the welded joints of 60 kg rails or 52 kg rails.
joggle fish plates can be used to protect welded joints from 52 Kg rails to 90 R rails.
Joggled Fish Plate Manufacturer:
Kingrail Parts can produce joggled fish plate with the same size as the customer's drawing. The quality of the blank used to manufacture the railway fishplate is good, without delamination, cracks, surface defects and any rough edges.
