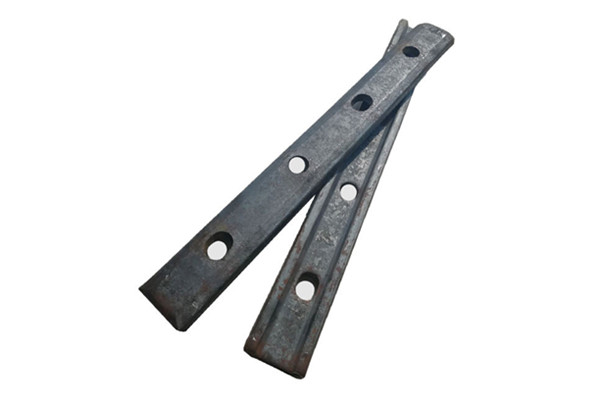

Fishp lates, also known as rail fish plates or rail joint bars or splice bars, are metal bars that are bolted to the ends of two rails to join them together to form a railway track.
Kingrail Parts can provide you with various types of fish plates. Our fish plates comply with international standards such as BS, UIC and DIN etc.
| Fishplate for UIC Standard Steel Rail | |||
|---|---|---|---|
| Steel Rail Type | Steel Rail Weight (KG/M) | Fishplate Standard | Fishplate Material |
| UIC54 | 54.43 | UIC | 45#,55# |
| UIC60 | 60.34 | ||
| Fishplate for BS Standard Steel Rail | |||
| BS50'O' | 24.833 | BS 47-1 |
55#,45# European Grade 700 |
| BS60A | 30.618 | ||
| BS75R | 37.041 | ||
| BS80A | 39.761 | ||
| BS90A | 45.099 | ||
| BS100A | 50.182 | ||
| BS113A | 56.398 | ||
| Joint Bar for AREMA 2007 Standard Steel Rail | |||
| 100RE(TR50) | 50.35 | AREMA 2007 |
45#,55#, AREMA Grade Steel |
| 115RE | 56.9 | ||
| 115-119RE | |||
| 132RE | 65.31 | ||
| 133RE | 66.1 | ||
| 136RE | 67.41 | ||
| 132-136RE | |||
| Fishplate For Chinese Standard Steel Rail | |||
| GB15KG | 15.2 | YB226-63 | Q235,45# |
| GB18KG | 18.06 | YB225-63 | |
| GB22KG | 22.3 | YB14-63 | |
| GB24KG | 24.46 | ||
| GB30KG | 30.1 | YB351-63 | |
| GB38KG | 38.733 | TB/T 2345-2008 | 45#,55# |
| GB43KG | 44.653 | ||
| GB50KG | 51.514 | ||
We can customize rail fish plates according to customers' specifications and requirements
Contact us
Please contact us for more information and quotations.
