A rail fishplate or rail joint bar is a metal bar bolted to the ends of two rails to join them together to form the rail.
Kingrail Parts can supply S49 fish plates with best price.
Specifications:
Material: 45# steel, 45Mn
Holes: 4 holes, 6 holes
Surface: Plain/Black Oil
Dimensions (L x W x H) (mm): 790/820mm
Producing process: Hot rolled
Application: S49 rail
Packing: Bundled by steel strips with iron/wood pallets

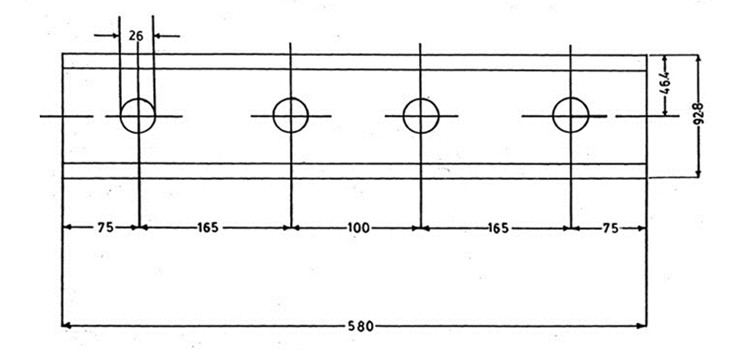

Drawing:
We can customize rail fish plates according to customers' specifications and requirements
Manufacturing Process:
Raw material - hot rolling of steel bars - cut to length - reheat - drilling holes - cooling- inspection- packing.
