Kingrail Parts' crane wheel blocks are primarily used on overhead cranes or gantry cranes as part of the crane end truck. Crane wheels with various diameters can meet different lifting capacity requirements from 5 tons to 30 tons.
Specification:

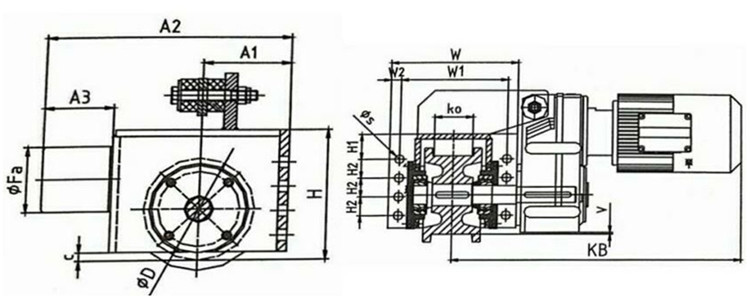

ØD (mm) | A1 (mm) | A2 (mm) | A3 (mm) | C (mm) | Fa (mm) | W(mm) | W1 (mm) | W2 (mm) | H (mm) | H1 (mm) | H2 (mm) | ØS (mm) | K0 (mm) |
125 | 122 | 290 | 50 | 10 | 60 | 230 | 200 | 15 | 213 | 45 | 45 | 14 | 65 |
160 | 141 | 354 | 80 | 20 | 80 | 230 | 200 | 15 | 220 | 45 | 45 | 14 | 65 |
200 | 166 | 404 | 80 | 25 | 80 | 260 | 210 | 25 | 275 | 65 | 50 | 18 | 75 |
250 | 191 | 464 | 90 | 25 | 100 | 310 | 260 | 25 | 325 | 70 | 65 | 18 | 80 |
320 | 225 | 530 | 90 | 35 | 100 | 320 | 260 | 30 | 385 | 75 | 75 | 22 | 80 |
400 | 290 | 680 | 100 | 40 | 120 | 360 | 300 | 30 | 480 | 100 | 100 | 22 | 85 |
500 | 335 | 770 | 100 | 60 | 120 | 420 | 340 | 80 | 590 | 130 | 120 | 26 | 90 |
Contact us
Please contact us for more information and quotes.
