54E1 (UIC54) rail is manufactured according to European standard EN 13674-1. It is used for railway construction. This is a T-section rail (flat-bottomed rail) with a mass of 54,77kg per meter.
For standard rails, 54E1/UIC54 rails are used for medium load and heavy load traffic.
UIC plays an important role in the standardization of parts for railway construction. UIC54 (54E1) is the best example of rails.
UIC54 Rail Specifications:
Material: R900A/R1100
Hardness: R260, R320
Type: Heavy Rail
Model: UIC54 UIC54E1
Bolt hole diameter: 30mm
Inspection standard: EN13674
Standard: EN 13674 – 4
UIC 54 Rail Size:
| Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
| H | B | C | D | E | cm² | kg/m | ||
| European standard EN 13674-1 | ||||||||
| 54E1 (UIC54) | EN 13674 - 1 | 159,00 | 140,00 | 70,00 | 49,40 | 16,00 | 68,77 | 54,77 |
Mechanical Properties of UIC 54 Rail:
| Standard | Steel Grades | Mechanical Properties | ||
| Rm MPa | min A5 % | HB | ||
| EN 13674 - 1 (2006) | ||||
| R200 |
min 680 |
14 | 200 - 240 | |
| R260 |
min 880 |
10 | 260 - 300 | |
| R260 MN |
min 880 |
10 | 260 - 300 | |
| R350 HT |
min 1175 |
9 | 350 - 390 | |

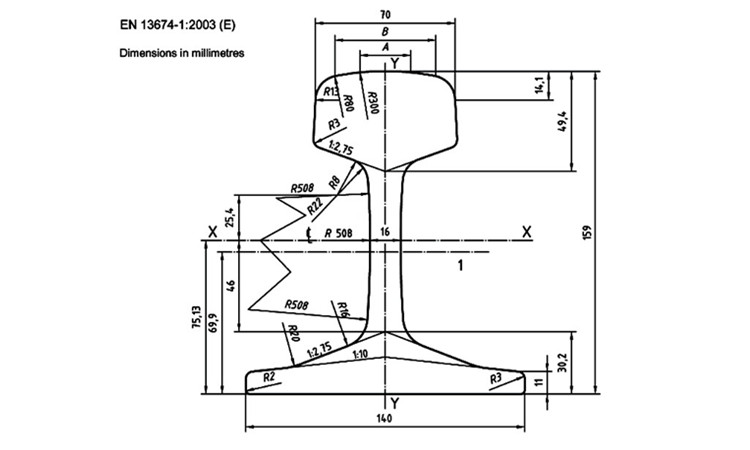

Drawings
UIC54 Rail Supplier:
Kingrail Parts is a professional steel rail supplier. We can supply a variety of rails, including light rails, heavy rails, crane rails and other different standards and specifications.
If you need EN standard 54E1 UIC54 rail, please contact us.
