136RE rails are rail products designed and produced in accordance with American AREAM standards. Similar to 90-pound rails, 115RE rails, and 132RE rails, it can be used in railway construction of heavy rails and crane rails. 136RE rail weighs 67.41 kilograms per meter, which is equivalent to 136 pounds per yard, hence the name 136 pound rail or 136 pound rail.
Dimensions
| Type | Head Width(mm) | Rail Height(mm) | Base Width(mm) | Web Thickness(mm) | Weight(kg/m) |
|---|---|---|---|---|---|
| 136RE(136lb) | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 |
| Rail Type: | 136 LB RAIL(TR68) |
|---|---|
| Nominal Weight(lbs/yd) | 136 |
| Standard Length | 39', 80' |
| Standard Drilling: | 3-1/2''×6'' or 3-1/2''×6''×6'' with 1-1/4'' dia. holes |
| Rail Joint Length: | 24'' or 36'' |
| Rail Joint Weight: |
4-hole joint: 70 lbs/pr with hardware: 79 lbs/pr 6-hole joint: 117 lbs/pr with hardware: 130 lbs/pr |
| Rail Bolt: | 1''×6'' |

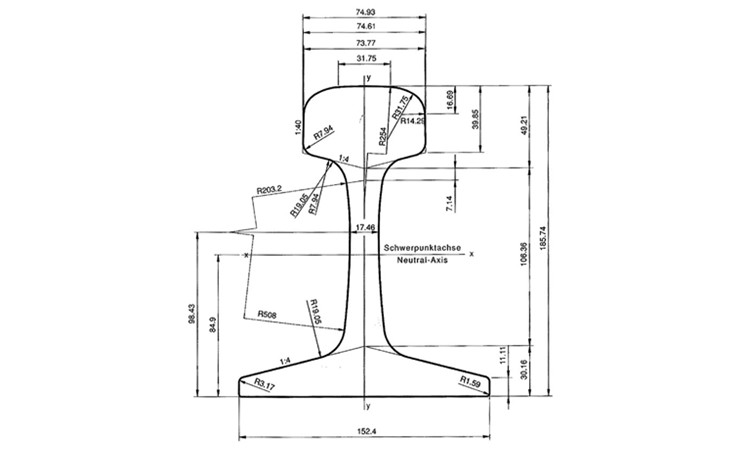

Drawing
The end face shape of 136RE rail adopts T-shaped section with the best bending resistance, which is composed of rail head, rail waist and rail bottom.
In order to make the rails better withstand forces from all aspects and ensure the necessary strength conditions. In order to make the rails better withstand forces from all sides and ensure the necessary strength conditions, the 136-pound rails are designed as heavy-duty rails with sufficient height, and the rail height is 185.74mm. The head and bottom of the 136-pound rail are designed with sufficient area and height, and the waist thickness reaches 17.46 mm.
The length of 136RE rail produced by Kingrail Parts is generally between 12-25 meters, and can also be customized according to customer needs.
