UIC 60kg rails have good comprehensive mechanical properties and are suitable for railway sections with complex stresses. They are widely used along railway lines in various countries. 60kg steel rails can be used to lay railway trunk lines, seamless railway lines, mines, shaft tracks, crane rails, ports, construction site light vehicle transport rails, etc.
60KG Rail Size
Type | Head Width(mm) | Rail Height(mm) | Base Width(mm) | Web Thickness(mm) | Weight(kg/m) |
---|---|---|---|---|---|
UIC 60kg Rail | 172 | 150 | 74.3 | 16.5 | 60.21 |
Specification:
Length: 12m~25m
Grade: 900A/1100
Country of Origin: China
Type: Heavy rail, crane rail
Certificate: ISO9001:2008
Standard: UIC 860
Mechanical behavior:
Standard | Steel Grades | Mechanical Properties | ||
Rm MPa | min A5 % | HB | ||
EN 13674 - 1 (2006) | ||||
R200 |
min 680 |
14 | 200 - 240 | |
R260 |
min 880 |
10 | 260 - 300 | |
R260 MN |
min 880 |
10 | 260 - 300 | |
R350 HT |
min 1175 |
9 | 350 - 390 |

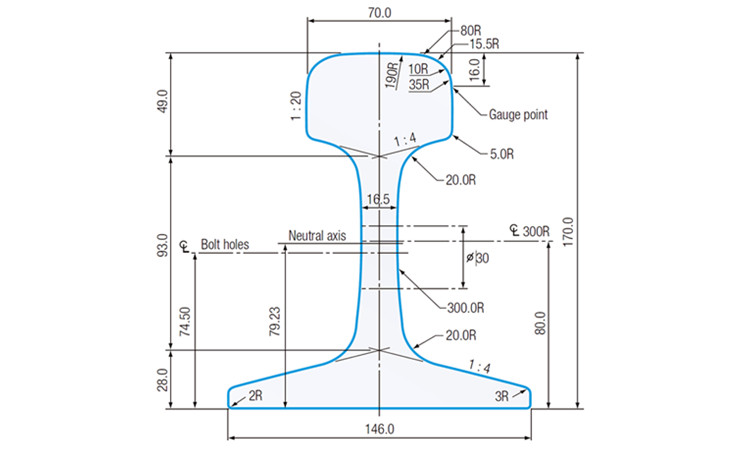

Drawing:
