Steel rails, also known as steel rails and steel rails, are the main components of railway tracks. Its function is to guide the locomotive wheels, bear the huge pressure of the wheels, and maintain the stability of railway transportation. The track must provide a continuous, smooth and minimal rolling surface for the wheels. In electrified railways or automatically blocked sections, rails can also be used as track circuits.
Specification:
Rail Type | Weight(Kg/m) | Material | Length(m) |
60kg | 60.64 | 50Mn/U7Mn | 12.5-25 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
73 | 150 | 176 | 16.5 |

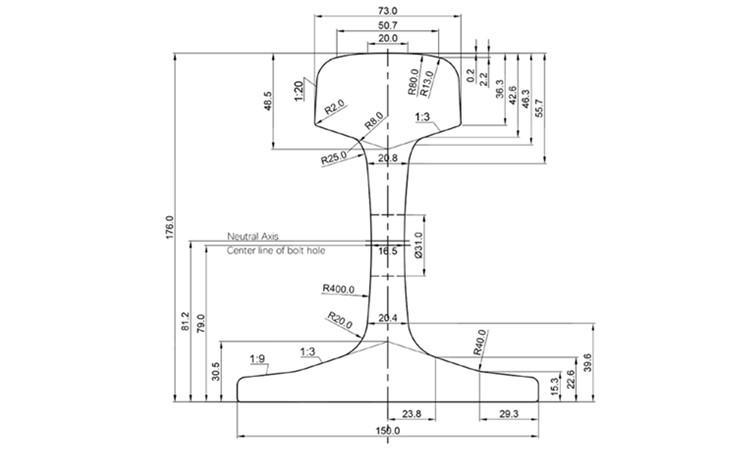

Drawing:
We supply and export 60KG Steel Rails with high quality and competitive prices.
The 60kg rail requires sufficient strength and toughness. The 60kg rail is one of the heavy-duty rails. The 60kg rail consists of rail head, rail waist and rail bottom.
Applications: Crane machinery, power plants, railway rails
Safe load: 20-50 tons
If you are interested in 60kg rails, please contact us.
