ASCE 80 rails are mainly used in crane rails, underground mining rails, factories, ports, railways, etc.
Kingrail Parts is a rail supplier from China that can supply various rails, including light rail and heavy rail, such as American standard ASCE80 rails, as well as crane rails of different standards and specifications.
Specification:
Dimensions: ASCE 80 Rail
Length: 12m~25m or other lengths according to customer requirements
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Rail | Standard | Dimensions mm | Section S | Mass m | ||||
---|---|---|---|---|---|---|---|---|
H | B | C | E | cm² | kg/m | |||
ASCE standard | ||||||||
ASCE 80 | ASCE | 127 | 127 | 63,50 | 13,89 | 50,55 | 39,68 |

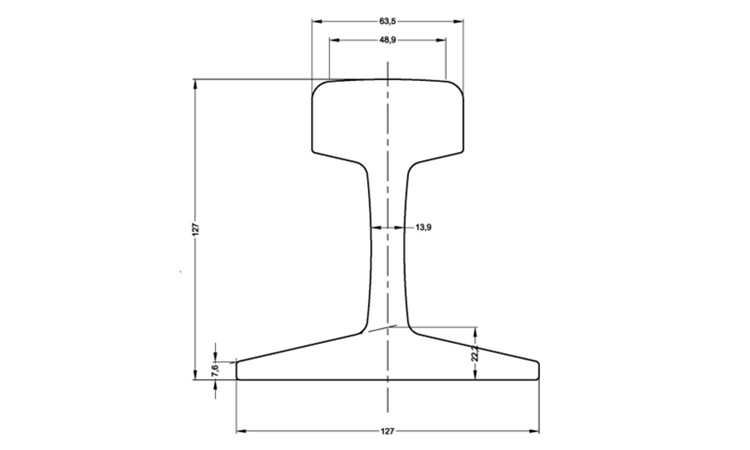

Drawing:
