Kingrail Parts' crane rail CR100 is manufactured according to Japanese standards and has a mass of 100.20 kg/m.
Kingrail Parts can supply Cr100 rails with high quality and competitive price. Cr100 rail is one of the heavy-duty rails.
Dimensions
Profile |
|
Dimensions mm | Section S | Mass m | |||
---|---|---|---|---|---|---|---|
H | B | C | E | cm² | kg/m | ||
CR100 |
ArcelorMittal Specification |
150 | 155 | 120 | 39 | 127,70 | 100,20 |

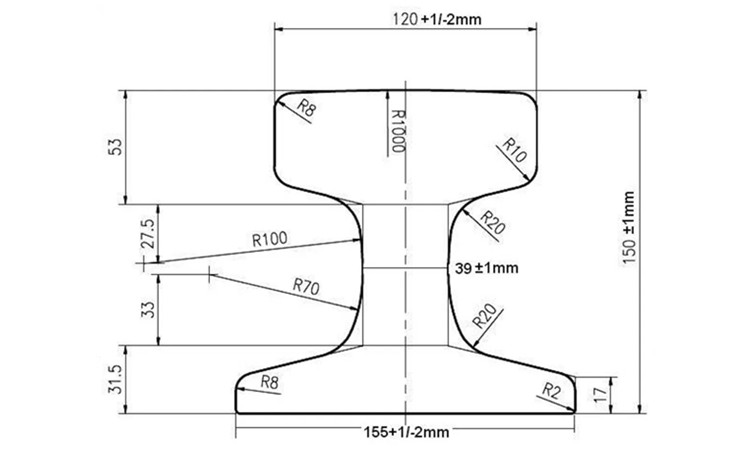

Drawing:
