Kingrail Parts can supply various types of rails, including light rails (JIS 15kg rails), heavy rails, crane rails of different standards and specifications.
15kg rails are mainly used for ground rails in factories and mine tunnels.
Specification:
Material: Q235B
Weight: 15.2kg/m
Standard: JIS E1103-91/JISE 1101-93
Length: 5-12m or other lengths according to customer requirements
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
JIS 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | 55Q | 9-10 |

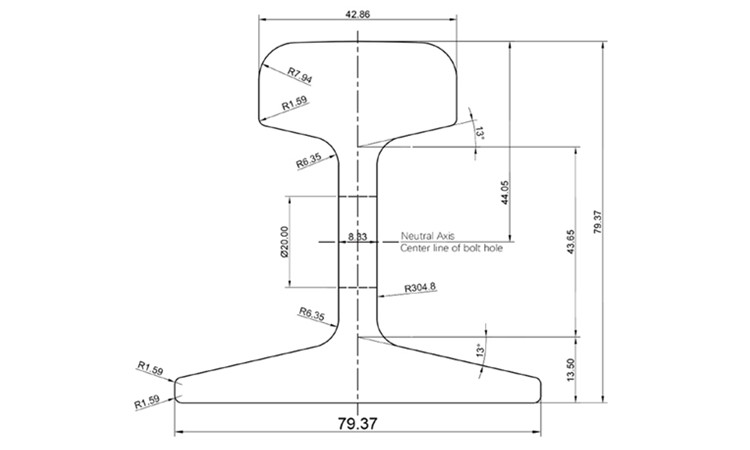

Drawing:
