JIS 10kg rails are mainly used for ground rails in factories and mine tunnels.
Kingrial Parts' 10kg rails are manufactured to Japanese Industrial Standard E1103 and are available in lengths of 6 -12 meters.
Specification:
Size: 10kg/m
Material: Q235B
Standard: JIS E1103-91/JISE 1101-93
Length: 6-12m or other length according to customers’ requirement
Dimensions
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
10kg | 66.67 | 66.67 | 34.13 | 6.35 | 10.10 |

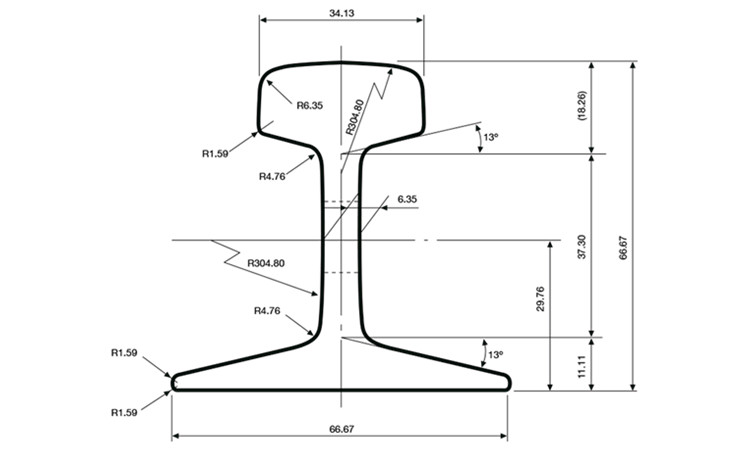

Drawing:
